RAW HM1000x Mini Chassis

Available in .22, .25
Only $1,799.95
$1,899.95
  • Save $100.00 (5%)
This item is not eligible for coupon discounts.
Select Option
  • Compact Combo
    (2 Options)
  • Gun Only
    (2 Options)
  • Hunter Combo
    (2 Options)
  • Long Range Combo
    (2 Options)
Select Caliber
  • .22
  • Sale
    .22
  • Sale
    .22
  • Sale
    .22
  • .25
  • Sale
    .25
  • Sale
    .25
  • Sale
    .25
  • Code: AGD-470112772 · $1,799.95 · .22 · 850 fps
Qty
Pre-Order
Estimated in stock date is 12-17-24
Notify Me

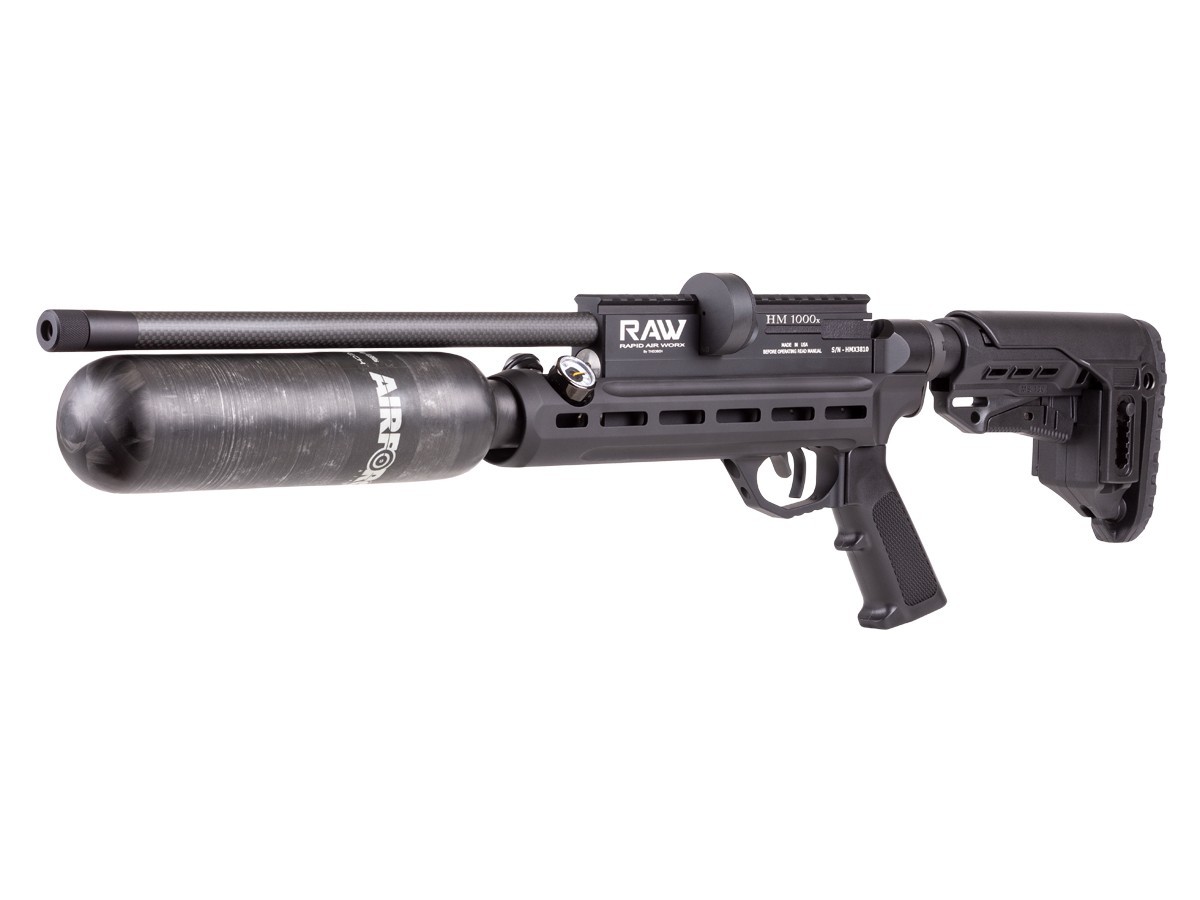

The RAW HM1000X Mini Chassis gives you a shorter and lighter option with performance that's better than expected for its size. You'll appreciate power up to 50 fpe in .25 and 40 fpe in .22 that gives you the precision and performance you need for superior hunting results.

The secret to the updated engineering on this air rifle is the amount of power you get from the shorter length thanks to the improved dual ported barrel design. You'll appreciate the two stage adjustable trigger that's light out of the box, and you can make it even lighter. You'll also enjoy the famous accuracy you get from this platform and the Lothar Walther polygonal barrel.

The Rapid Air Worx HM1000X Mini Chassis gives you an aircraft grade aluminum chassis with tactical styling and features for easy adjustments, and pairs it with the action from the bigger guns in the HM1000X lineup. You'll get an AR-compatible stock and grip that you can change out for your preferred parts, and you can adjust the A-B Arms buttstock with ridged rubber buttpad to get a custom length of pull.

This air rifle gives you a Picatinny scope rail so you can add your favorite scope to get excellent long distance precision with each shot, plus this Chassis version offers M-LOK accessory rails on the sides and bottom of the forend so you can add things like lasers, lights, and bipods that give the rifle added capabilities and make it easier to use.

If you're in the market for a lightweight and compact version of the larger original with superb performance for hunting and the same features as the earlier model, get the RAW HM1000X Mini Chassis from Airgun Depot now.



RAW HM1000X Mini Chassis Features:

  • PCP
  • Lightweight and rigid aircraft-grade aluminum chassis
  • Improved dual-ported barrel
  • M-LOK rails on three sides for accessories
  • AR-compatible A-B Arms grip and buttstock
  • A-B Arms buttstock adjusts for length of pull and cheek weld
  • Length of pull adjusts from 11.75" to 16"
  • Reversible cheek riser accommodates right or left-handed shooters
  • Sidelever can be swapped from Right-Hand to Left-Hand
  • Male quick-connect fill fitting
  • 490cc carbon fiber air bottle
  • Fill pressure: 250 BAR (approx. 3,625 PSI)
  • Max. shots per fill: 60 (.22, w/25.39gr pellets), 45 (.25 w/33.95gr pellets)
  • Fully adjustable, match-grade trigger
  • Lothar Walther polygonal rifled barrel
  • Fully moderated, carbon fiber-wrapped barrel w/ two piece shroud
  • Fully regulated
  • Precision side-lever cocking mechanism
  • Max. power: 40 fpe (.22), 50 fpe (.25)
  • 12-shot rotary magazine (.22/.25)
  • Easy access hammer spring adjustment
  • Max. velocity: 850 fps (.22), 820 fps (.25)
  • Barrel length: 15"
  • Overall length: 32"-34"
  • Includes one magazine
  • Made in the USA

Hunter Combo Includes: Hawke Vantage 4-12x50 AO Rifle Scope and Hawke 1" Tactical Rings ($331.98 value)

Compact Combo Includes: Hawke Airmax 30 Touch 3-12x32 Rifle Scope and Hawke 30mm Tactical Match Rings ($546.98 value)

Long Range Combo Includes: Hawke Frontier 30 3-15x50 Rifle Scope and Hawke 30mm Tactical Match Rings ($1096.98 value)

Read More
Specs
  • ManufacturerRAW Rapid Air Worx
  • Caliber .22
  • Velocity 850 fps
  • Condition New
  • Ammo Type Pellets
  • Action Sidelever
  • Barrel Style Lothar Walther
  • Fire Mode Repeater
  • Gun Weight 7.80
  • Overall Length 34.00
  • Barrel Length 15.00
  • Loudness 4-Medium-High
  • Mechanism Pre-charged pneumatic
  • Rail Weaver/Picatinny
  • Safety Manual
  • Front Sights none
  • Rear Sights none
  • Shots per Fill 60
  • Trigger Adjustability Two-stage adjustable
  • Trigger Action 0
  • Use Small game hunting/target practice
  • Warranty 1-year limited warranty
